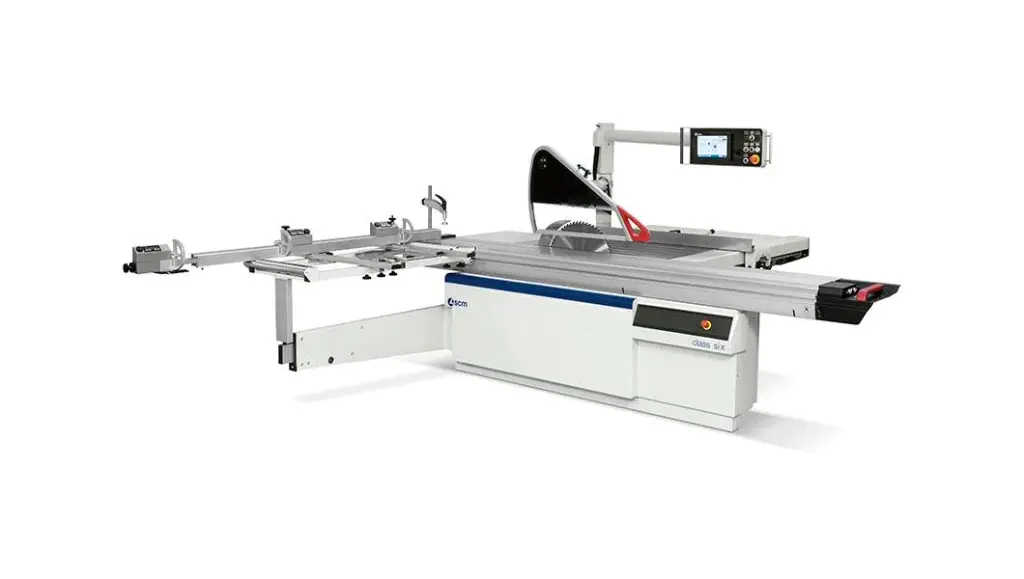

SCM CLASS SI X
Console eye-S main functions:
- connectivity among machines belonging to the same company network and 4.0 Industry preset
- sharing of work programs and tools database
- activity monitoring and reporting on the use of the machine
- connectivity with SCM Thundercut (optimizer/sequencer App)
- self-diagnosis, tele-service and link to troubleshooting
Technical data
| class si x | ||
| Max. saw blade diameter | mm/inches | 550 |
| Maximum saw blade projection from table to 90°/+45°/-45° | mm/inches | 200/130/105 |
| Saw blade rotation speed | rpm | 3000 ÷ 5000 |
| Cutting width on rip fence | mm/inches | 1000 ÷ 1500 |
| Squaring capacity | mm/inches | 2200 ÷ 3800 |
| Three-phase motors power | kW/Hz | 9 (11) / 50 (60) |
