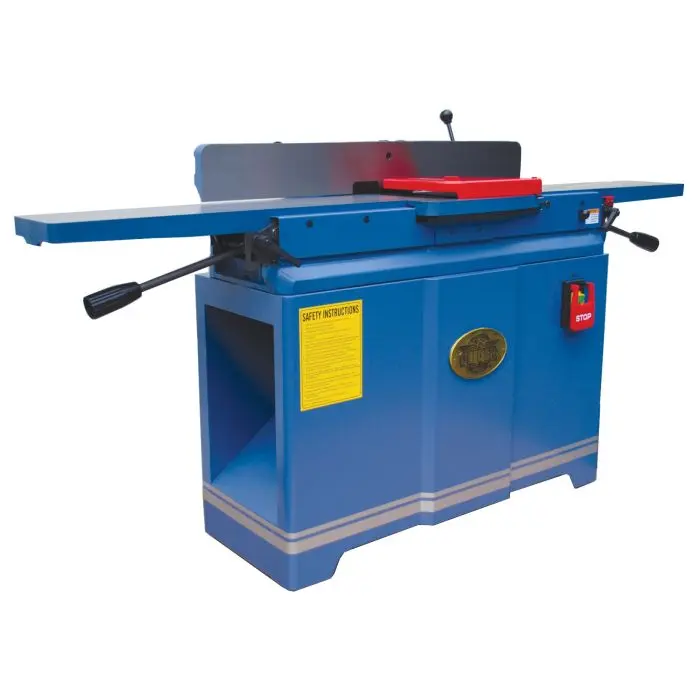

8” Parallelogram Jointer with HCX Helical Cutterhead 2HP 1Ph
- Extra-long precision ground tables provide a stable work surface.
- Parallelogram design provides smooth accurate cuts.
- Cast iron frame offers stable table support.
- Fully enclosed cabinet with 4" port for superior dust management.
- Built-in mobile base with lockable wheels.
- Cabinet includes push pad storage.

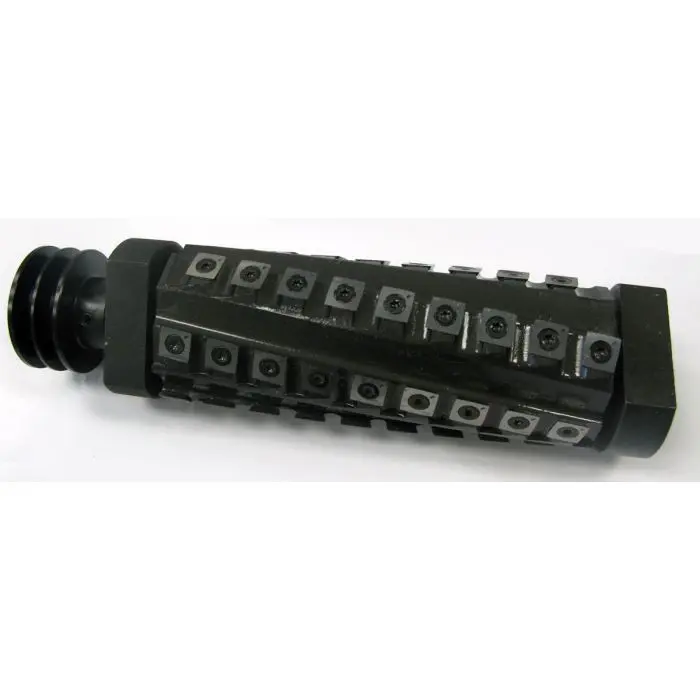

- Oliver HCX Helical cutterheads with premium carbide inserts.
- 4-sided cutting inserts are indexed and easy to replace.
- Lever controlled infeed and outfeed table adjustment allows quick set-up.
- Long precision ground fence tilts up to 135° with positive stops at 45° and 90°.
- Easy to read depth of cut gauge.
- Large lockable paddle switch for added safety.
- Powerful TEFC 2HP single-phase motor.
- Ploy V-belt drive efficiently delivers power to the cutter head.
- CSA Listed.
| Model Number | 4235 |
|---|---|
| Stock Number | 4235.201 (2HP, 1Ph, Helical) |
| Infeed Table Travel | 1/2" |
| Cutterhead Speed | 5,500 RPM |
| Number of Knives (helical) | 36 Inserts |
| Maximum Depth of Cut | 1/8" |
| Rabbeting Capacity | 1/2" |
| Dust Port Diameter | 4" |
| Table Dimensions | 72” L x 8” W |
| Table Height | 31-1/2" |
| Fence Dimensions | 38" x 5" |
| Fence Tilts | 90°, 45°, 135° |
| Positive Stops | 90° and 45° |
| Motor 1Ph | 2HP, 230V Only (1Ph, 8 Amp) |
| Net Weight | 352 lbs. |
| Gross Weight | 490 lbs. |
