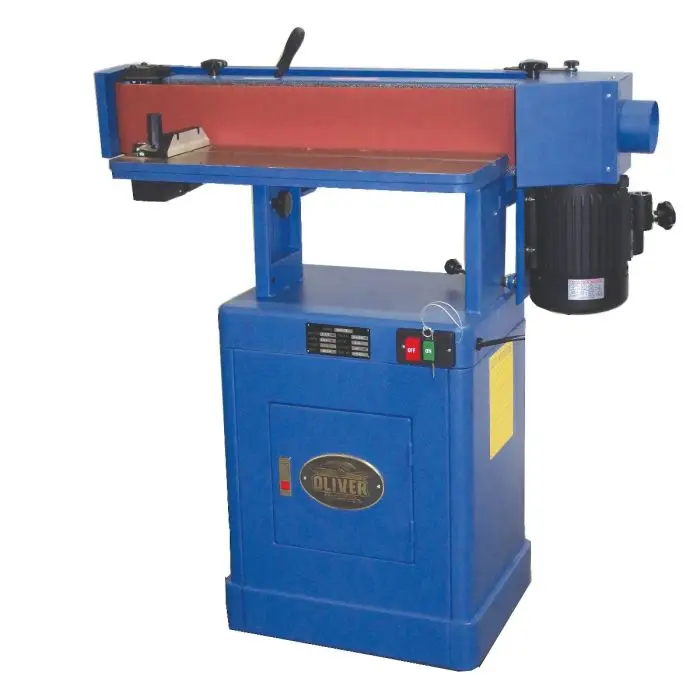

6" x 89" Oscillating Edge Sander 1.5HP 1Ph Motor
- 6” x 89” belt features oscillation action for a superior finish.
- Belt operates at any angle between horizontal and vertical.
- Easy belt changing and tracking adjustments.
- Steel platen is graphite covered for reduced friction.
- Contoured sanding possible with end table in place.
- Tables are heavy cast iron and precision ground.
- Tables adjust up and down for complete use of belt.
- Main table slotted and includes a miter gauge.
- Table fence included to assist in operation.
- Heavy duty enclosed cabinet features a storage area.
- Lockable on/off switch.
- Powerful TEFC 1.5HP single phase motor.
| Model Number | 6303 |
|---|---|
| Stock Number | 6303.001 |
| Table Material | Cast Iron |
| Main Table Size | 10” x 29-1/2” |
| End Table Size | 9-3/4” x 11-3/4” |
| Main Table Working Height | 38” - 41-1/2” |
| End Table Working Height | 37-1/2” - 42” |
| Belt Size | 6” x 89” |
| Belt Speed | 3,900 FPM |
| Oscillation Stroke | 1/2” |
| Fence Size | 3” x 23-1/2” |
| Dust Port Diameter | 4" |
| Minimum CFM Required | 650 CFM |
| Motor | 1.5HP 115/230V 1Ph Prewired 115V w/Plug (18/9 Amp) |
| Overall Dimensions | 50” x 24” x 49” |
| Net Weight | 247 lbs. |
| Gross Weight | 270 lbs. |
