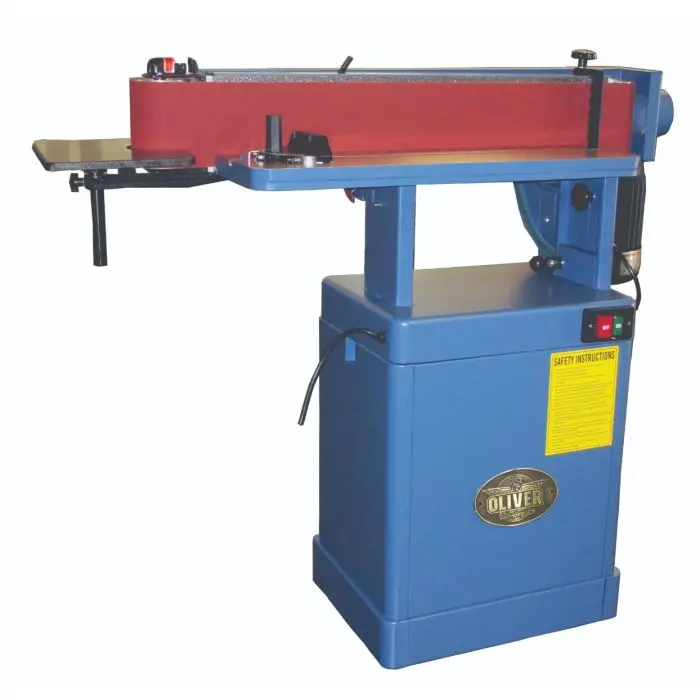

6" x 89" Edge Sander 1.5HP 1Ph Motor
- Can be used with the belt in the horizontal or vertical position or any angle in between.
- Precision ground steel platen is graphite covered to reduce heat.
- Cast iron table is vertically adjustable allowing full use of belt.
- Belt tracking and tension are easy to adjust.
- Full access to the belt allows quick replacement.
- Adjustable end table is included allowing contour sanding applications.
- Miter gauge is included for added value and increased versatility.
- Full cabinet design provides a stable work station.
- Built-in 4” dust port allows efficient dust management.
- Industrial push button controls are located for easy control.
- Powerful TEFC 1.5HP single phase motor.
| Model Number | 6305 |
|---|---|
| Stock Number | 6305.001 |
| Table Length | 27” |
| Table Width | 10” |
| Table Material | Cast Iron |
| Belt Size | 6” x 89” |
| Belt Speed | 3,900 FPM |
| Front Table Size | 27” x 9.8” |
| Table Tilt | 90° to 180° |
| Table Height | 37-1/2” - 40-1/2 |
| Dust Port Diameter | 4" |
| Motor | 1.5 HP, 1Ph 115/220V Prewired 115 (18/9 Amp) |
| Overall Dimensions | 48” x 21” x 48” |
| Net Weight | 247 lbs. |
| Gross Weight | 280 lbs |
