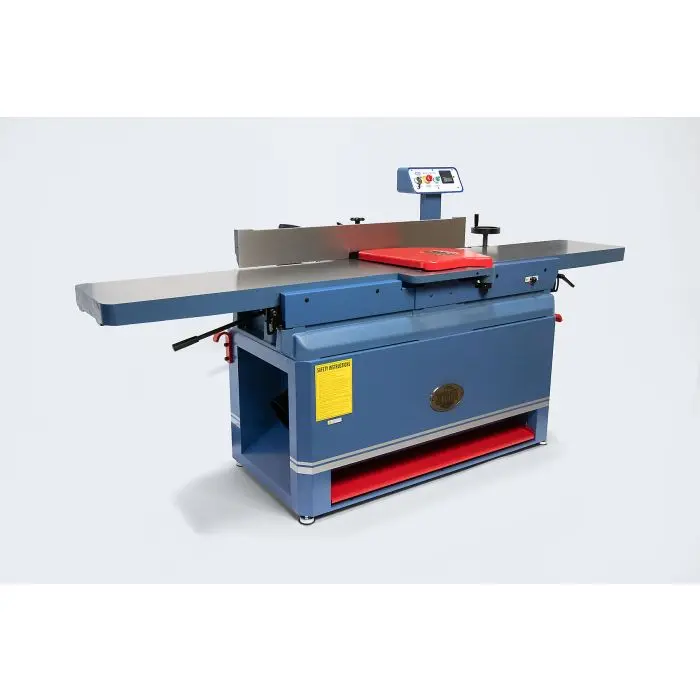

16” Parallelogram Jointer with HCX Helical Cutterhead 5HP 1Ph Motor
- Extra-long precision ground tables provide a stable work surface
- Parallelogram design provides smooth accurate cuts
- Massive cast iron frame offers stable table support
- Fully enclosed cabinet with 6” port for superior dust management
- Oliver HCX Helical cutterhead with premium carbide inserts
- 4-sided cutting inserts are indexed and easy to replace
- Elevated control panel with key lock and emergency off switch
- Wixey DRO shows table infeed table movement for precision cuts
- Pre-drilled bracket for easy (optional) powerfeed mounting
- Foot activated emergency power shutoff.
- Handwheel controlled infeed table allows for quick adjustment and auto-lock during operation
- Lever controlled outfeed table allows easy adjustment
- Long solid cast iron fence features positive stops at 45° and 90°
- Quick slide and lock fence adjustment
- Easy to read depth of cut gauge
- Powerful 5hp 1Ph motor
- Ploy V-belt drive efficiently delivers power to the cutter head
- CSA Listed
Note: This new 4275C 16" jointer has a solid cast iron fence that replaces the aluminum fence and fold down guide in this video. The new model does not have the fold down guide. This machine is only avaliable for shipping to the nearest terminal with loading ramp for local pick up due to its size.
| Model Number | 4275C |
|---|---|
| Ph | 1Ph |
| Stock Number | 4275.101.4S (5HP, 1Ph) |
| Infeed Table Travel | 3/4" |
| Cutterhead Speed | 5,500 RPM |
| Number of Knives (helical) | 76 Inserts |
| Maximum Depth of Cut | 1/8" |
| Rabbeting Capacity | 3/4" |
| Dust Port Diameter | 6" |
| Table Dimensions | 16" x 100" |
| Table Height | 34-3/4” |
| Fence Dimensions | 47”L x 6”W |
| Fence Tilts | 45° |
| Positive Stops | 90° and 45° |
| Motor 1Ph | 5HP, 230V (1Ph, 19.5 Amp) |
| Overall Dimension | 100”L x 40”W x 41”H |
| Net Weight | 1,020 |
| Gross Weight | 1,320 lbs |
