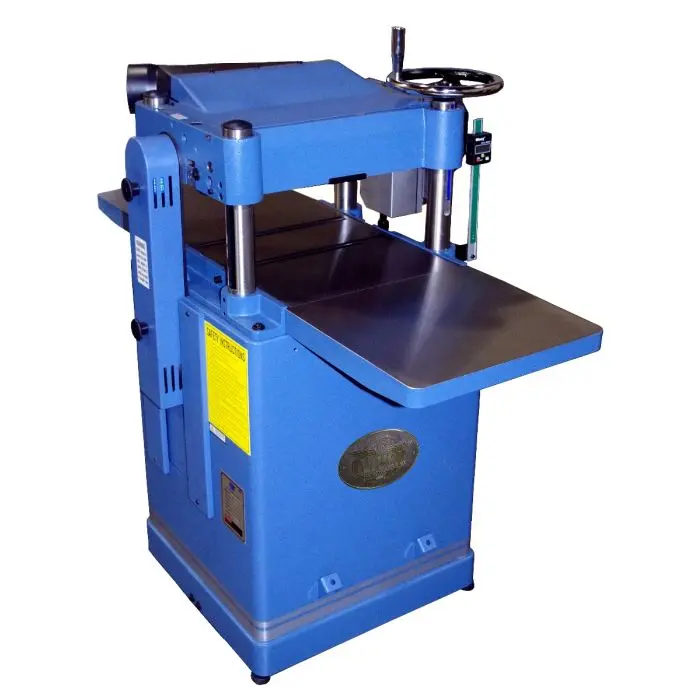

15" Planer with HCX Helical Cutterhead 3HP 1Ph
- Unique design allows motor and cutter head to move in unison.
- Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping.
- Oliver HCX Helical cutterhead with premium carbide inserts.
- 4-sided cutting inserts are indexed and easy to replace.
- Heavy cast iron construction including extension wings.
- Table and extensions wings are precision ground for smooth stock feeding.
- Table is fixed allowing easy use of auxiliary stock support.
- Wixey digital read out allows precise thickness settings.
- Large hand wheel and support struts allow easy height adjustment.
- Four-post design ensures head alignment regardless of stock thickness.
- Two-speed feed gearbox for better cuts.
- Oil bath gear lubrication for years of performance.
- 4” port allows excellent dust management.
- Built-in heavy-duty casters for mobility.
- Magnetic switch for added protection and safety.
| Model Number | 10014 |
|---|---|
| Stock No. (3HP, 1Ph) | 10014.201 |
| Stock Number | 0 |
| Maximum Stock Width | 15" |
| Maximum Depth of Cut | 1/8" |
| Maximum Stock Thickness | 6" |
| Minimum Stock Thickness | 3/16" |
| Minimum Stock Length | 6" |
| Dust Port Diameter | 4" |
| Feed Speeds | 16/20 FPM |
| Bed Rollers | 2, Adjustable |
| Table Size | 15" x 19-5/8" |
| Table Size w/Extension Wings | 15" x 47-5/8" |
| Table Height | 30-1/8” |
| Cutterhead Diameter | 3" |
| Cutterhead Speed | 5,000 RPM |
| Number of Knives | 52 |
| Number of Knives (helical) | 52 |
| Table Support | 4-Column |
| Motor | 3HP, 220V Only (1Ph, 12 Amp) |
| Motor 1Ph | 3HP, 220V Only |
| Overall Dimensions | 28” x 47-1/2” x 52” |
| Net Weight | 401 lbs. |
| Gross Weight | 470 lbs. |
