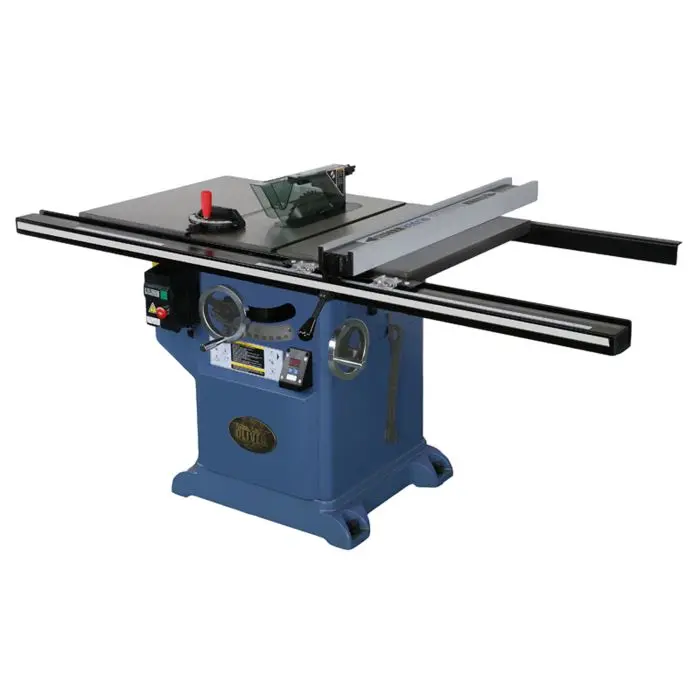

10" Heavy Duty Table Saw 5HP 3Ph w/36” Rails
Voltage:
230V Standard
460V Upgrade + $150.00
- Large precision ground table provides a stable work surface.
- Cast iron base offers a steady platform.
- Fully enclosed cabinet and blade dust shroud for better dust management.
- Precision ground 5/8” arbor.
- Wide stance trunnion features a left tilt blade.
- Poly V-belt drive smoothly transfers power to the blade.
- Hydraulic assisted blade lift mechanism for easy movement.
- Large chrome hand wheels allow easy adjustments.
- Includes digital readout of blade tilt.
- Riving knife splitter for added safety against kick-back.
- Optimus T-square fence available in 36” rip capacity.
- 36” rail includes (2) cast iron extension wings.
- Optional rear support table available.
- Magnetic controls with emergency off switch.
- Powerful TEFC motor available in three phase.
- Miter gauge included.
- Blade not included.
Great stories have a personality. Consider telling a great story that provides personality. Writing a story with personality for potential clients will assist with making a relationship connection. This shows up in small quirks like word choices or phrases. Write from your point of view, not from someone else's experience.
Great stories are for everyone even when only written for just one person. If you try to write with a wide, general audience in mind, your story will sound fake and lack emotion. No one will be interested. Write for one person. If it’s genuine for the one, it’s genuine for the rest.
| Model Number | 4016.004 |
|---|---|
| Ph | 3Ph |
| Rail Length | w/36' Rail |
| Stock Number | 4016 |
| Stock No. (5HP, 3Ph) | 4016.004 |
| Blade Diameter | 10" - 40 tooth blade included |
| Arbor Diameter | 5/8" |
| Blade Tilt | Left |
| Arbor Speed | 3,450 RPM |
| Maximum Depth of Cut at 90° | 3" |
| Maximum Depth of Cut at 45° | 2-1/4" |
| Maximum Width of Dado | 13/16" |
| Maximum Cut to Right of Blade | 36” |
| Maximum Cut to Left of Blade | 12" |
| Dust Port Diameter | 4" |
| Table Dimensions w/o Extensions | 27”D x 21-1/4”W |
| Wing Size | 27” x 12” |
| Table Height | 36" |
| Motor 3Ph | 5HP, 3Ph, 220V/440V* Prewired 220V (12/6 Amp) |
| Overall Dimensions | 74”L x 32-½”W x 40”H |
| Net Weight | 480 lbs. |
| Gross Weight | 720 lbs. |
