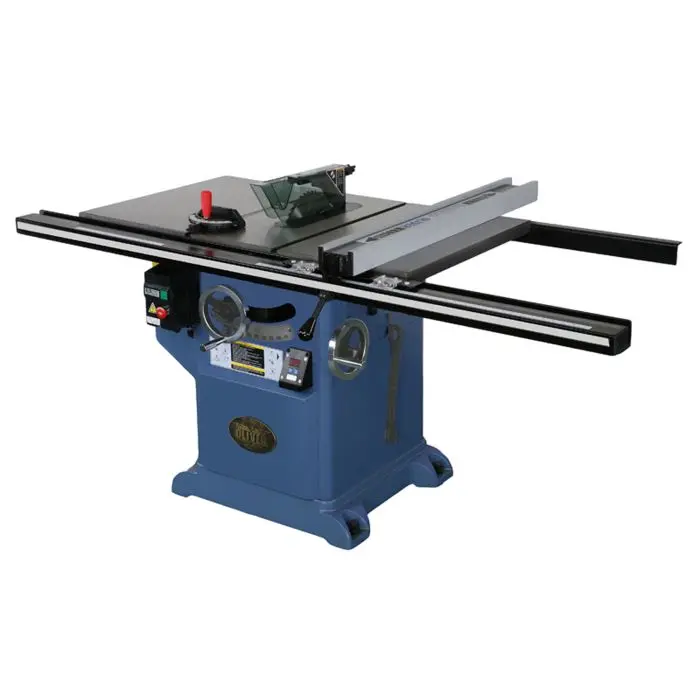

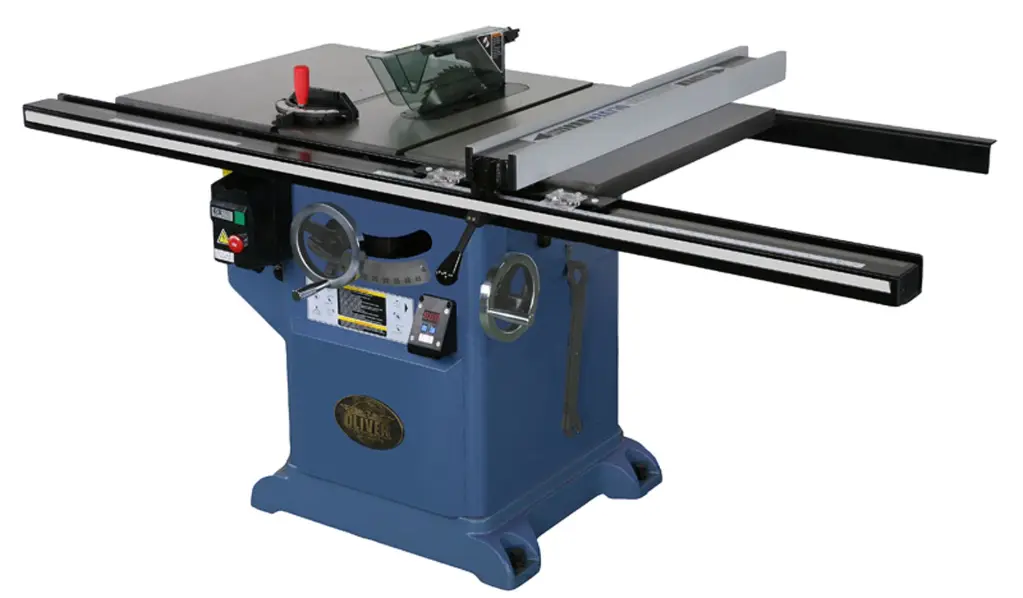

10" Heavy Duty Table Saw 5HP 1Ph w/52” Rails
- Large precision ground table provides a stable work surface.
- Cast iron base offers a steady platform.
- Fully enclosed cabinet and blade dust shroud for better dust management.
- Precision ground 5/8” arbor.
- Wide stance trunnion features a left tilt blade.
- Poly V-belt drive smoothly transfers power to the blade.
- Hydraulic assisted blade lift mechanism for easy movement.
- Large chrome hand wheels allow easy adjustments.
- Includes digital readout of blade tilt.
- Riving knife splitter for added safety against kick-back.
- Optimus T-square fence available in 52” rip capacity.
- 52” rail includes wood side table and (1) cast iron extension wing.
- Optional rear support table available (pictured)
- Magnetic controls with emergency off switch.
- Powerful TEFC motor available in single phase.
- Miter gauge included.
- Blade not included.
| Model Number | 4016.003 |
|---|---|
| Ph | 1Ph |
| Rail Length | w/36' Rail |
| Stock Number | 4016 |
| Stock No. (5HP, 1Ph) | 4016.003 |
| Blade Diameter | 10" - 40 tooth blade included |
| Arbor Diameter | 5/8" |
| Blade Tilt | Left |
| Arbor Speed | 3,450 RPM |
| Maximum Depth of Cut at 90° | 3" |
| Maximum Depth of Cut at 45° | 2-1/4" |
| Maximum Width of Dado | 13/16" |
| Maximum Cut to Right of Blade | 36”or 52” with side table |
| Maximum Cut to Left of Blade | 12" |
| Dust Port Diameter | 4" |
| Table Dimensions w/o Extensions | 27”D x 21-1/4”W |
| Wing Size | 27” x 12” |
| Table Height | 36" |
| Motor 1Ph | 5HP, 1Ph, 220V Only (19.5 amps) |
| Overall Dimensions | 74”L x 32-½”W x 40”H |
| Net Weight | 480 lbs. |
| Gross Weight | 720 lbs. |
