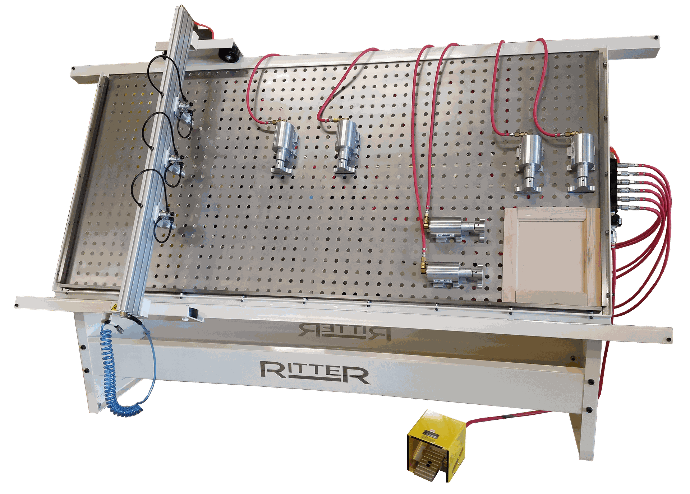

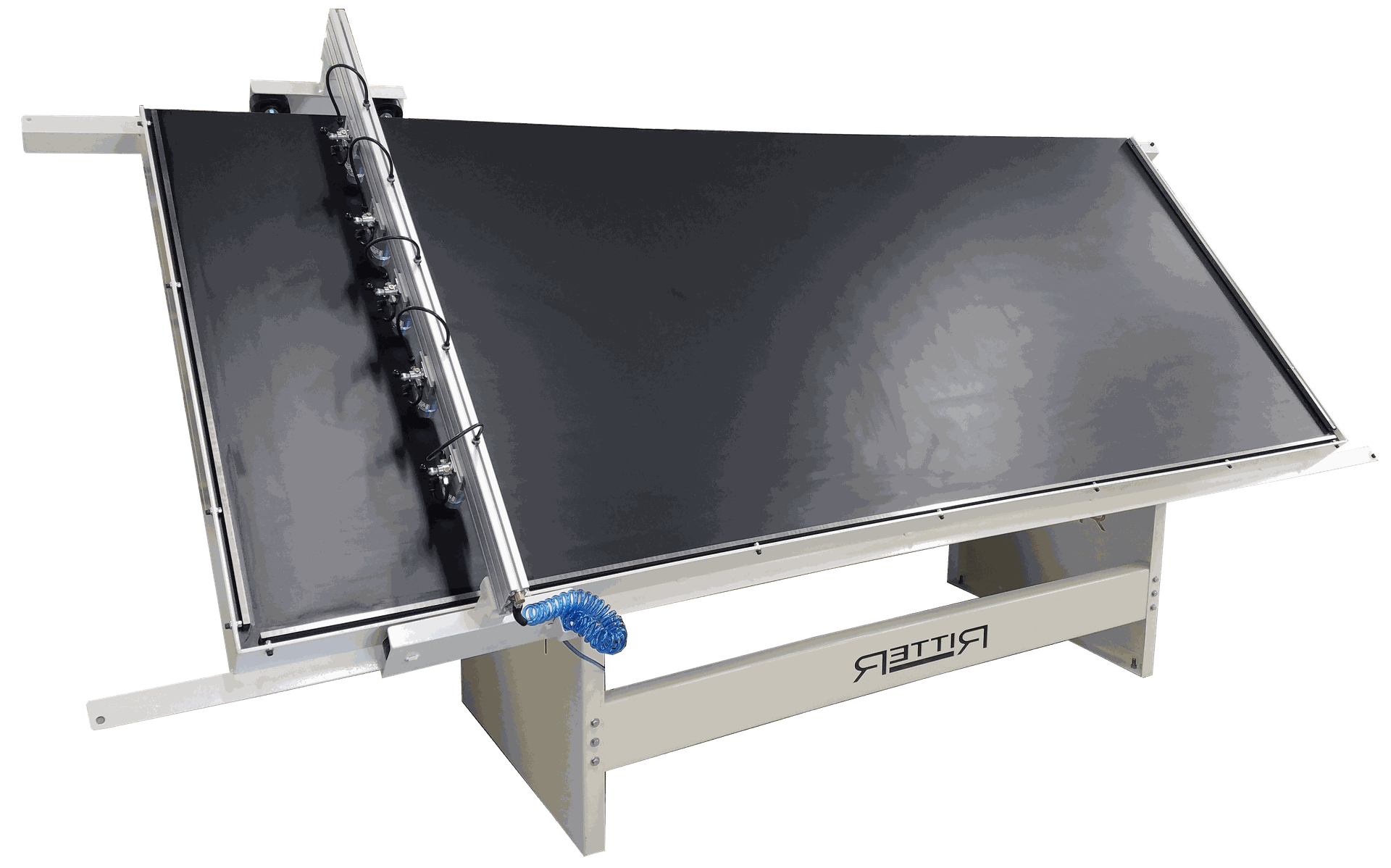

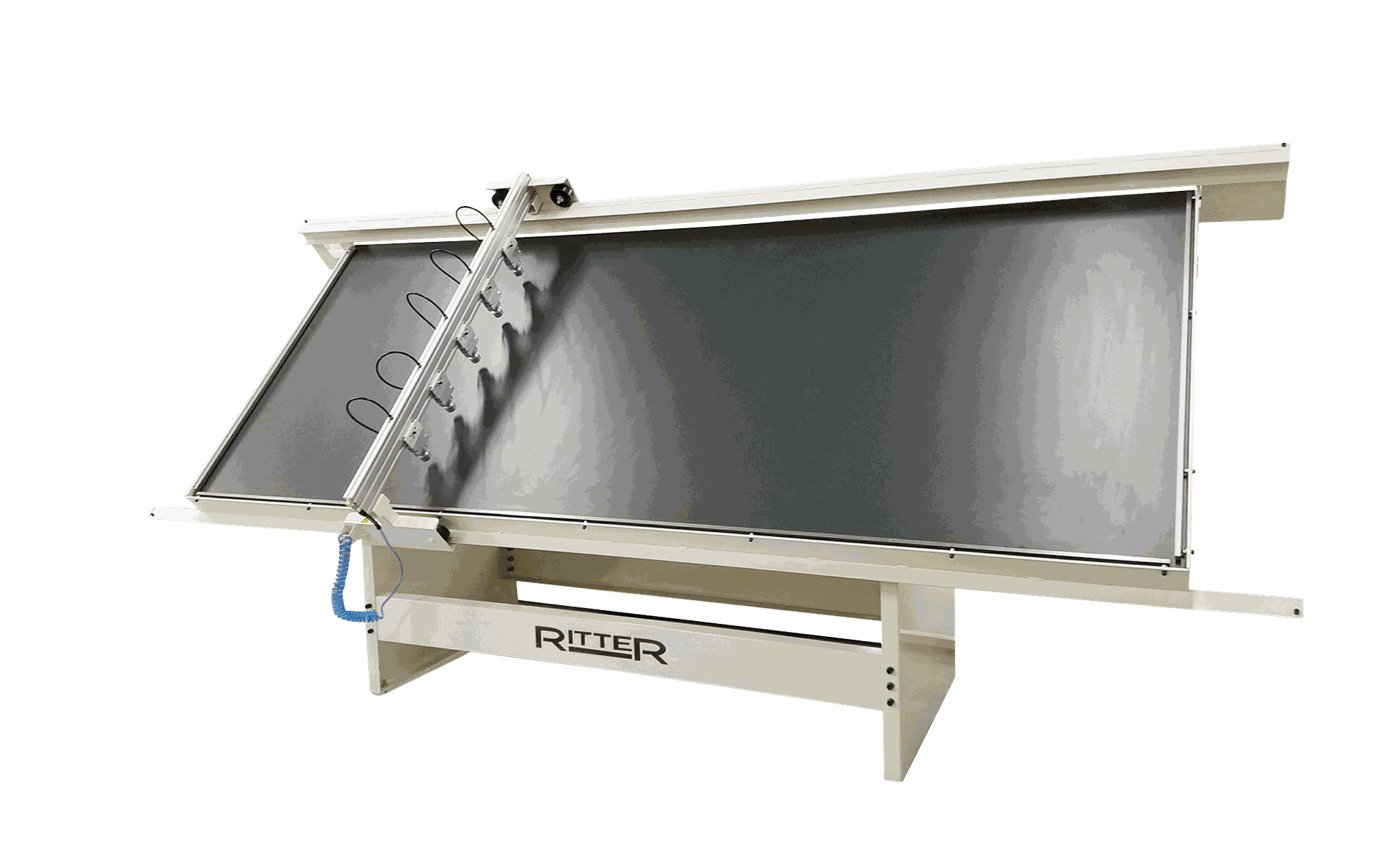

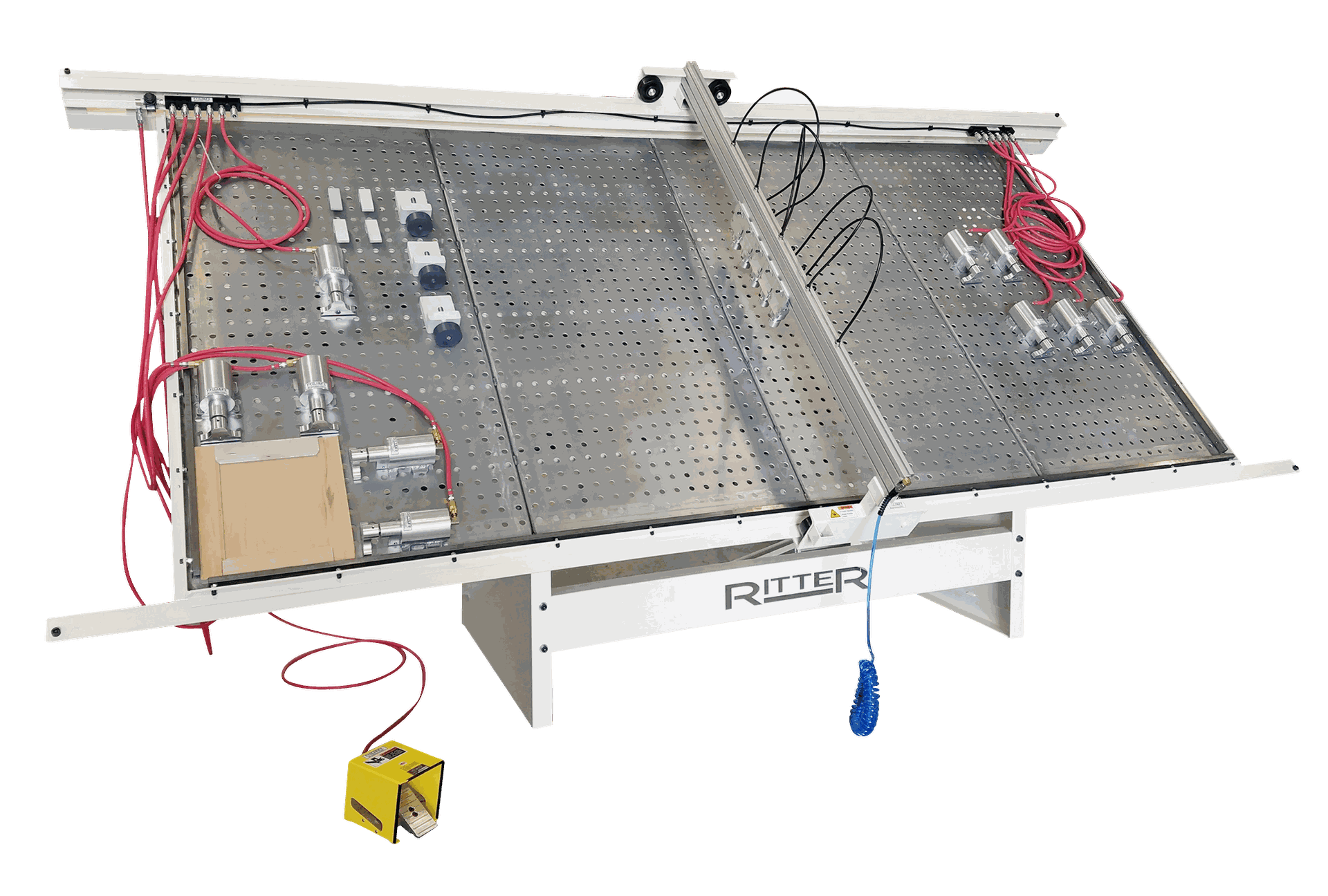

Ritter Face Frame Assembly Tables

Ritter’s heavy duty Face Frame assembly tables ensure flush and tight joint construction is provided for all types of wood. Screwed together face frame construction provides the most efficient and economical method of joining frames. The elimination of dowel boring and insertion, clamping time and joint misalignment can provide up to 50% time reduction in frame production.

R215EA

  • 5'x8' Assembly Table
  • Hold Down Beam with (3) Adjustable Hold Down Cylinders
  • Squaring Bars on Left and Bottom Sides
  • Usable Table Area: 58.5" x 94.5"

More Information

R200EA

  • 5'x12' Assembly Table
  • Hold Down Beam with (5) Adjustable Hold Down Cylinders
  • Squaring Bars on Left, Right and Bottom Sides
  • Usable Table Area: 58.5" x 141"

More Information

R210EA

  • 5'x12' Assembly Table w/ Open back
  • Hold Down Beam with (5) Adjustable Hold Down Cylinders
  • Squaring Bars on Left, Right and Bottom Sides
  • Usable Table Area: 58.5" x 141"

More Information

R475EA

  • 3'x6' Assembly Table
  • Hold Down Beam with (3) Adjustable Hold Down Cylinders
  • Squaring Bars on Left, Right and Bottom Sides
  • Usable Table Area: 33.5" x 71"

More Information

R275EA

  • 4'x8' Assembly Table
  • Hold Down Beam with (3) Adjustable Hold Down Cylinders
  • Squaring Bars on Left, Right and Bottom Sides
  • Usable Table Area: 46" x 95"

More Information

R250EA

  • 6'x12' Assembly Table w/ Open back
  • Hold Down Beam with (5) Adjustable Hold Down Cylinders
  • Squaring Bars on Left, Right and Bottom Sides
  • Usable Table Area: 58.5" x 141"

More Information
